Github Actions and Workflows

2020-05-11

Goals

  1. Auto-generate and commit diagrams on diagram source push to repo
  2. Auto-check links from Markdown source files on push to repo
  3. Auto-generate html from Sphinx RST or MD files

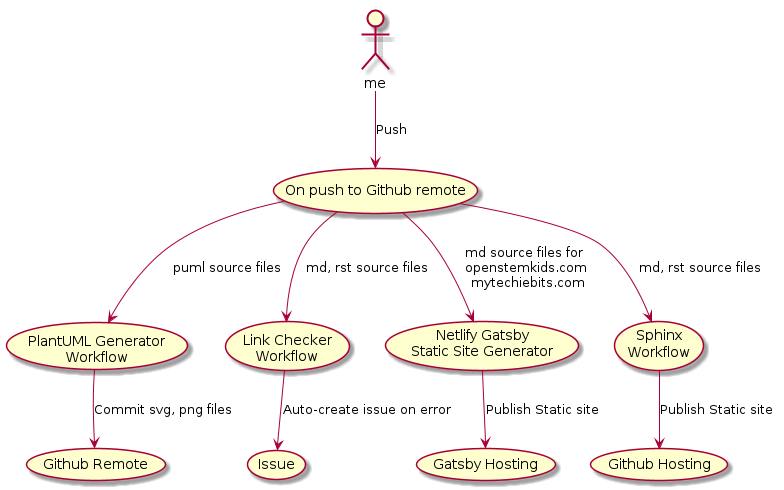

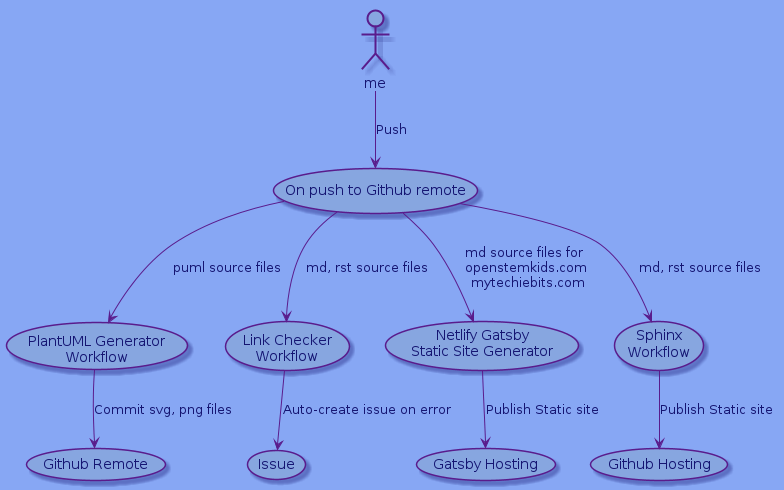

workflow

GitHub Actions

Github Actions “Automate, customize, and execute your software development workflows right in your repository with GitHub Actions. You can discover, create, and share actions to perform any job you'd like, including CI/CD, and combine actions in a completely customized workflow.”

First Impressions

  1. I like!
  2. I went from knowing / having zero to something working next day.
  3. I learnt a lot about GitHub Actions in the last 24 hours - benefitting from diagnosing why existing actions did not work with my workflow e.g. https://github.com/cloudbees/plantuml-github-action/pull/3
  4. Documentation and examples are pretty good.
  5. I like that Docker can be used for the actions so this makes the solution portable.
  6. Performance is reasonable - not as fast as a pre-built docker container running locally but fast enough to match my commit frequency.

Auto-generate and commit diagrams on diagram source commit to repo:

  1. PlantUML source files *.puml are uploaded to a GitHub repo
  2. This triggers the workflow associated with that repo for each file
  3. Checkout source
  4. Generate svg diagrams
  5. Generate png diagrams
  6. List source file and generated files
  7. Commit files
  8. Push new images to repo

PlantUML GitHub Actions

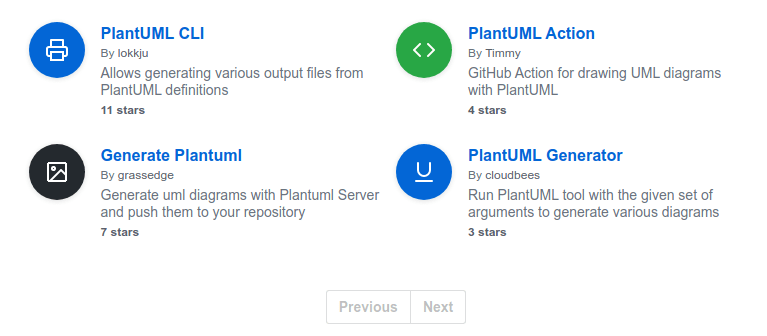

There's several PlantUML Actions in the Github Marketplace.

https://github.com/marketplace?query=plantuml

plantuml

PlantUML Generator looks to be the closest to what I want.

This ran but did not produce any output files.

After a bit of poking around it turned out to be how the environment variables were passed in the example workflow associated with this PlantUML Github action. https://github.com/cloudbees/plantuml-github-action/pull/3

I then added a github push action - chosing the simplest one I found that did the job.

Workflow

This is the first draft workflow. It meets the stated goal.

Other ideas/features will be tracked on the associated Github Project https://github.com/Crashedmind/PlantUMLGithubWorkFlow/projects/1

The workflow lives here https://github.com/Crashedmind/PlantUMLGithubWorkFlow/.github/workflows/main.yml. Snapshot below:

#https://help.github.com/en/actions/reference/workflow-syntax-for-github-actions#onpushpull_requestpaths

name: Generate PlantUML Diagrams
on:
  push:
    paths:
      - '**.puml' #matches zero or more of any character

jobs:
  ci:
    runs-on: ubuntu-latest
    env:
        UML_FILES: ".puml"
    steps:
      - name: Checkout Source
        uses: actions/checkout@v2

      - name: Get changed UML files
        id: getfile
        run: |
          echo "::set-output name=files::$(git diff-tree -r --no-commit-id --name-only ${{ github.sha }} | grep ${{ env.UML_FILES }} | xargs)"

      - name: UML files considered echo output
        run: |
          echo ${{ steps.getfile.outputs.files }}

      - name: Generate SVG Diagrams
        uses: cloudbees/plantuml-github-action@master
        with:
            args: -v -tsvg *${{ env.UML_FILES }}

      - name: Generate PNG Diagrams
        uses: cloudbees/plantuml-github-action@master
        with:
            args: -v -tpng *${{ env.UML_FILES }}

      - name: List files
        run: ls *${{ env.UML_FILES }}; ls *.svg; ls *.png

      - name: Commit Changed Files
        run: |
          git config --local user.email "action@github.com"
          git config --local user.name "GitHub Action"
          git add --all
          git commit -m "Add changes" -a

      - name: Push Changed Files
        uses: ad-m/github-push-action@master
        with:
          github_token: ${{ secrets.GITHUB_TOKEN }}

Auto-check links from Markdown source files on push to repo

The workflow lives here https://github.com/Crashedmind/MyTechieBits.com/.github/workflows/main.yml. Snapshot below.

Below workflow is pretty much as per examples in https://github.com/peter-evans/link-checker, but args changed to only scan *.md files (because package.json file was being scanned and creating lots of false positive errors).

on: push
jobs:
  linkChecker:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v2
      - name: Link Checker
        uses: peter-evans/link-checker@v1
        with:
          args: -v -r *.md
      - name: Create Issue From File
        uses: peter-evans/create-issue-from-file@v2
        with:
          title: Link Checker Report
          content-filepath: ./link-checker/out.md
          labels: report, automated issue

Auto-generate html from Sphinx RST or MD files

The workflow lives here https://github.com/Crashedmind/sphinx-github-workflow/.github/workflows/main.yml. Snapshot below.

name: "Pull Request Docs Check"
on:
  push:
    paths:
      - '**.rst' #matches zero or more of any character

jobs:
  docs:
    runs-on: ubuntu-latest
    steps:
    - uses: actions/checkout@v1
    - uses: ammaraskar/sphinx-action@master
      with:
        build-command: "sphinx-build -b html . _build/html"
        docs-folder: "docs/"
    - uses: actions/upload-artifact@v1
      with:
        name: DocumentationHTML
        path: docs/_build/html/
